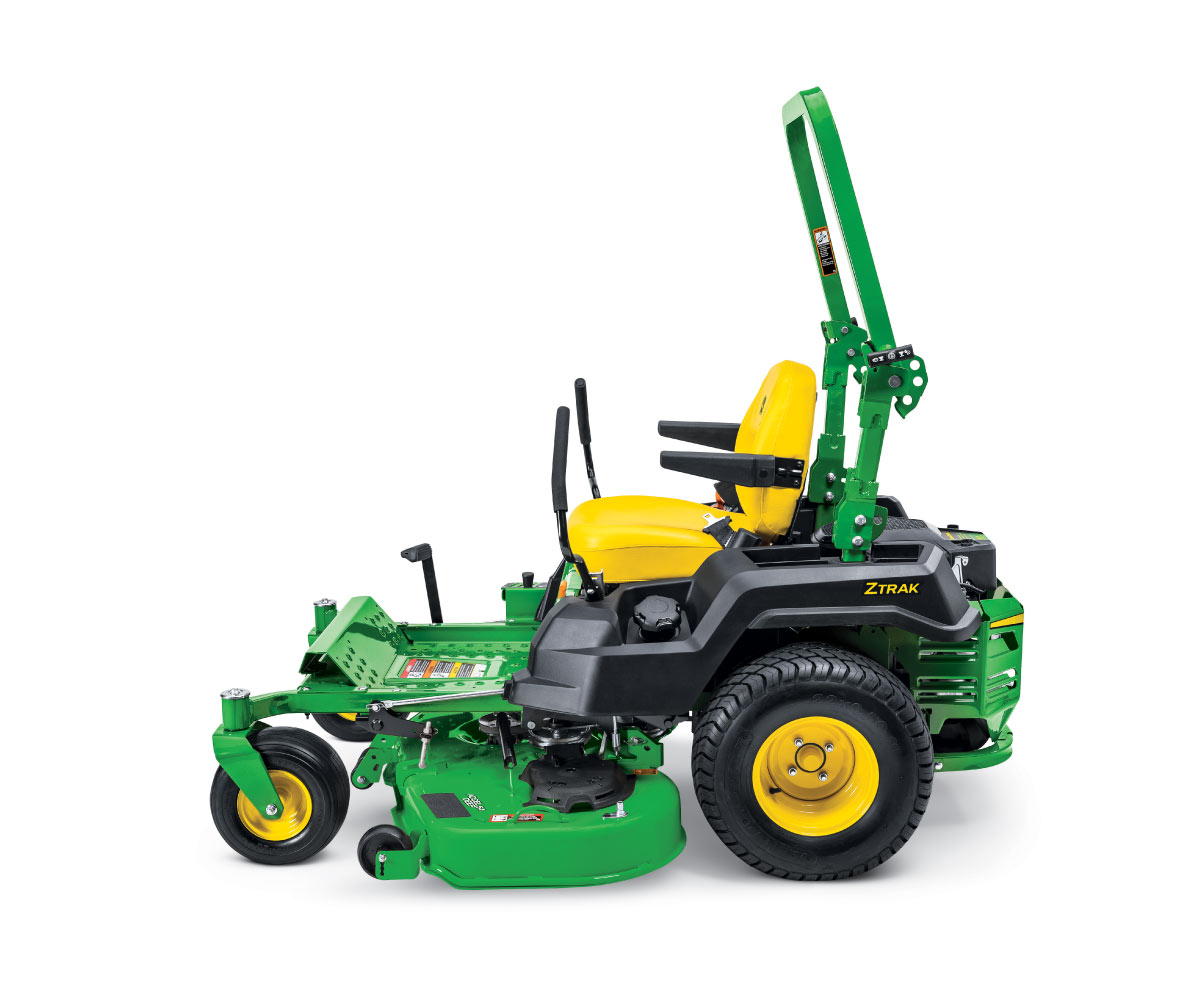

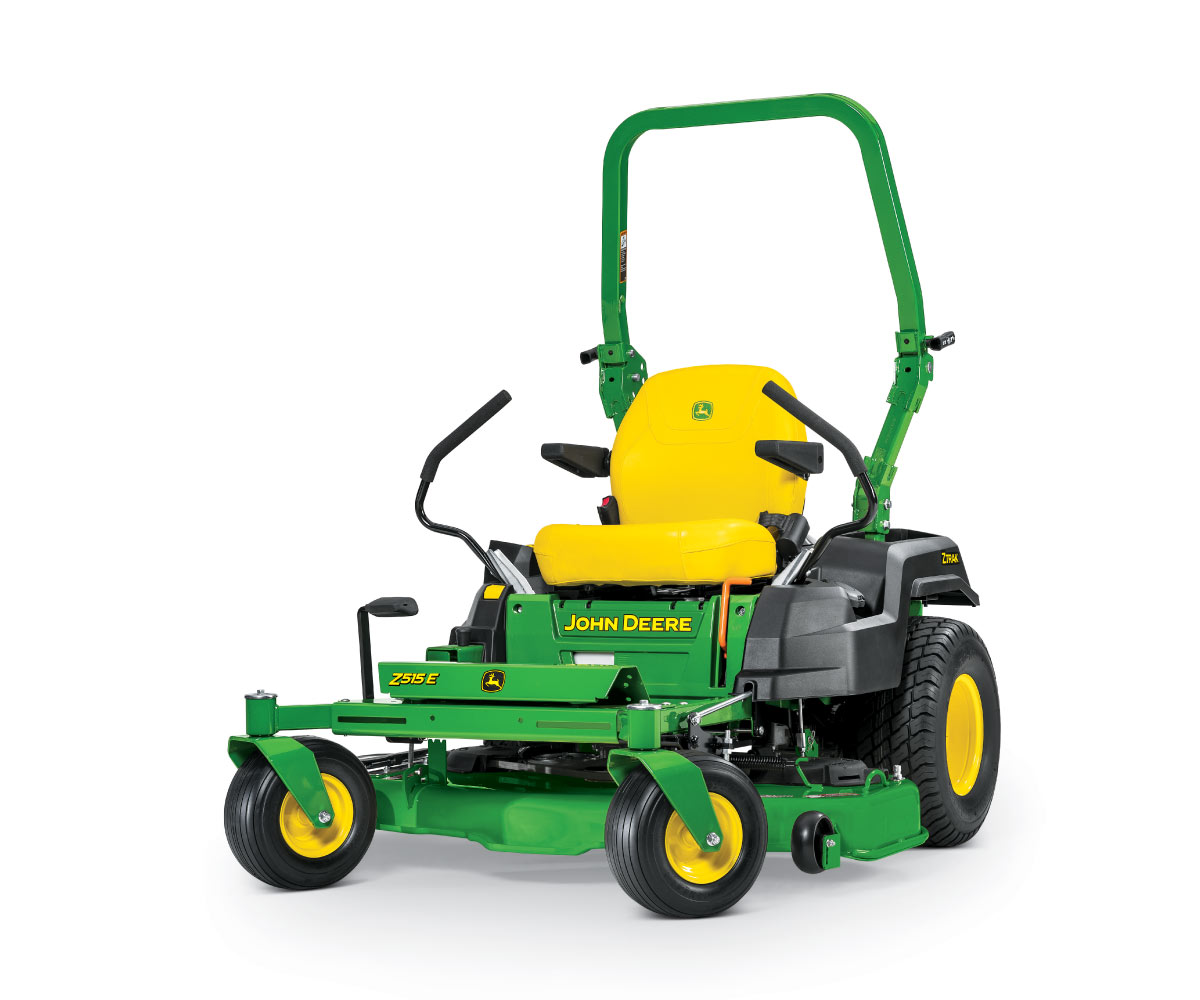

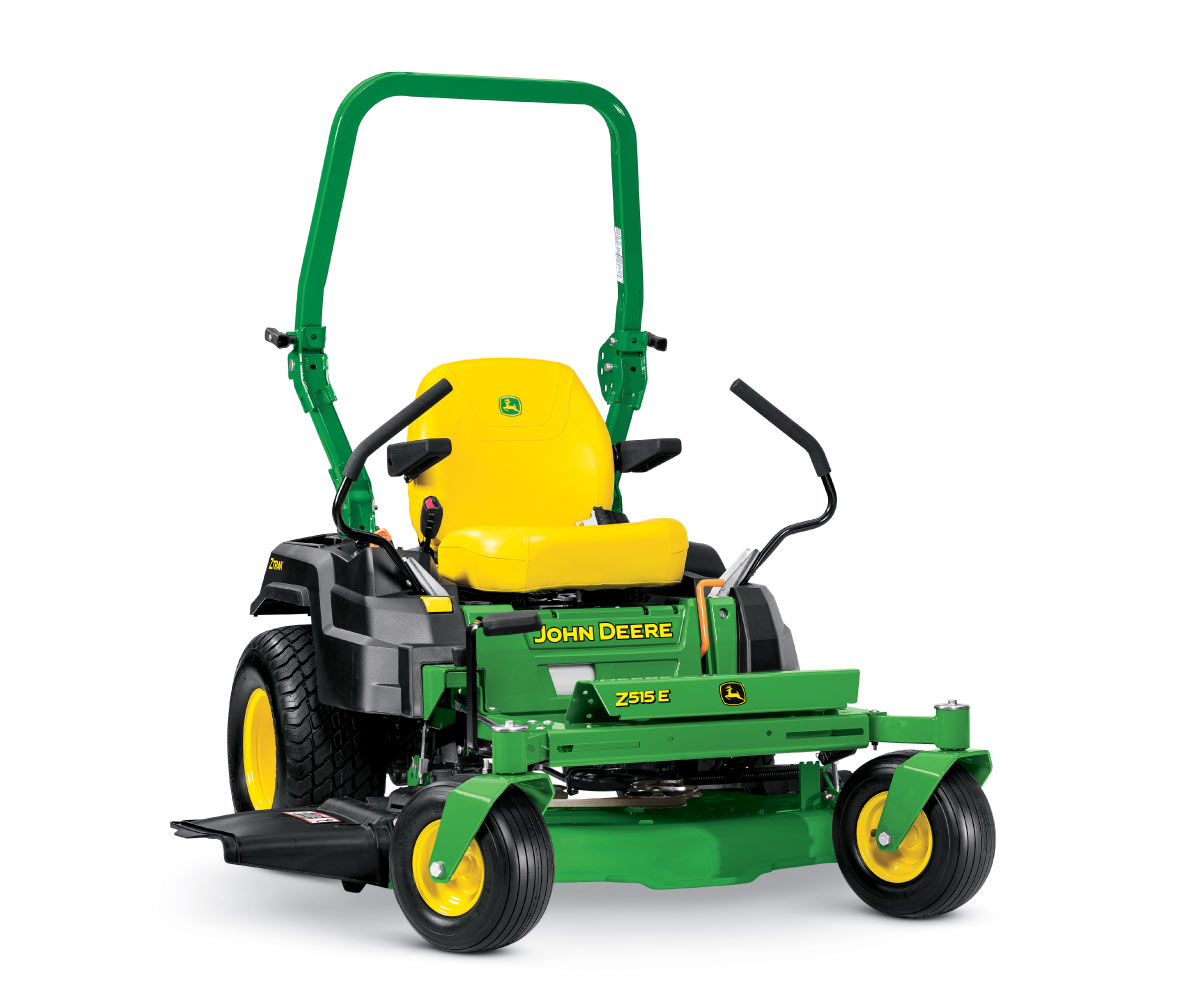

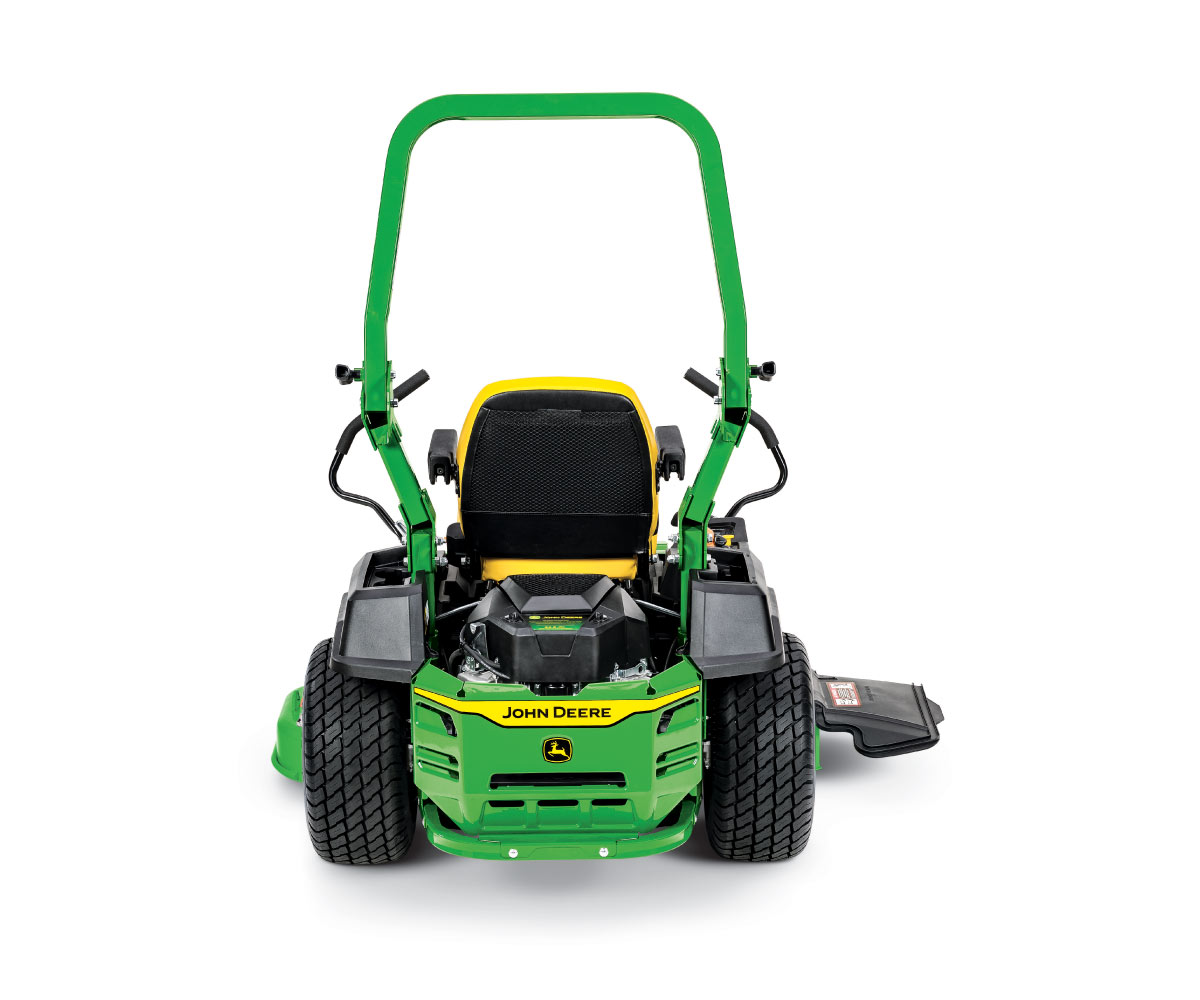

Z515E ZTrak™ Mower with 54-in. Deck

$5,399.00

  • 24 hp* (17.9 kW) V-Twin engine
  • 54-in (137 cm) Accel Deep™ deck, compatible with optional MulchControl™ kit
  • Folding Rollover Protective Structure (ROPS)
  • 18-in. cut and sewn seat with armrests and easy to read fuel gauge
  • 4-year/300-hour bumper-to-bumper warranty

Subtotal:

$5399

Trade-in ($):

Sales Tax (%):

$0.00

Total with Tax:

$0.00


Additional Down Payment:

(0%) $0.00 required down payment when you finance for 72 months.

Total Amount Financed:

$0.00

Finance Charge:

(0%) $0.00

Total:

$0.00

Financing Options

†(0%) $0.00 finance charge when you finance for 72 months.

Military, Farm Bureau, John Deere Rewards and other rebates may be available. Eligibility will be determined at checkout. Contact dealer for complete details.

Payment:

$0.00 / Month

All financing subject to credit approval, offer ends 4/30/2025.

Request More Info/Apply For Financing

customize your mower

Local pickup only

Warranty Package Coverage Includes:
Extension of John Deere factory comprehensive warranty for labor, and repair or replacement parts in the event your covered product fails to operate as a result of a mechanical or electrical failure caused by defects in workmanship and/or materials. At our discretion, replacement parts used in covered repairs will be either new Genuine John Deere parts or Genuine John Deere remanufactured parts or components furnished by John Deere. Free pickup and Delivery within a twenty five mile radius.

Warranty Package Coverage Does Not Include:
1) Any product used in a commercial setting or rental basis.
2) Any services not authorized by the administrator or performed by an unauthorized servicer.
3) Any Additional costs for services not specifically covered by this Agreement.
4) Incidental, consequential, or secondary damages or delay in rendering service under this Agreement or loss of use during the period that the covered product is at an authorized service center or otherwise awaiting parts.
5) Transportation, parts, or repair due to normal wear and tear and items normally designed to be periodically replaced by the purchaser during the covered product’s life, including but not limited to blades, belts, batteries, light bulbs, hoses, etc.; loss or damage caused by war, invasion, or act of foreign enemy, hostilities, civil war, rebellion, riot, strike, labor disturbances, lockout, or civil commotion; damage from accident, abuse, misuse, mishandling, introduction of foreign objects into the covered product, failure to follow the manufacturer’s instructions, and external causes including third party actions, fire, theft, insects, animals, exposure to weather conditions, lightning, windstorm, sand, dirt, hail, earthquake, flood, water, acts of God or consequential loss of any nature.
6) Nonfunctional or aesthetic parts, including but not limited to plastic parts, knobs, rollers, baskets, scratches, peeling, and dents.
7) Accessories or attachments used in conjunction with a covered product, other than mower decks used on lawn tractors, lawn and garden tractors, and commercial mowers.
8) Service where no problem can be found.
9) Breakdowns that are not reported within the terms of this Agreement.

Maintenance Package Includes:
Worry free maintenance plan, complete service, free pickup and delivery within a twenty five mile radius.

Maintenance plan includes services listed below:

1) Change Engine Oil and Filter

2) Change Air Filter and Pre-Cleaner

3) Change Spark Plugs

4) Change Fuel Filter

5) Check Transmission Oil, if applicable

6) Check Engine Coolant, if applicable

7) Change Hydraulic Filter

8) Sharpen Blades

9) Check Safety Systems

10) Level Mower Deck

11) Check and Adjust Tire Pressure

12) Check Wheel Bolts

13) Check and Tighten Loose Hardware

14) Check Engine Cooling Fins

15) Check Battery

16) Check Electrolyte Level and Battery Voltage

17) Clean Radiator Fins and Air Intake Screens

18) Clean Under Mower Deck

19) Lubricate Front Axle Pivot

20) Lubricate Front Spindles

21) Lubricate Front Wheel Bearings

22) Lubricate Mower Spindles

23) Lubricate Mower Gage Wheels

24) Check Belts and Mower Adjustments

We will provide transportation, labor, and repair or replacement parts in the event your covered product fails to operate as a result of a mechanical or electrical failure caused by defects in workmanship and/or materials. At our discretion, replacement parts used in covered repairs will be either new Genuine John Deere parts or Genuine John Deere remanufactured parts or components furnished by John Deere.

Maintenance Coverage Does Not Include:
1) Any services not authorized by the administrator or performed by an unauthorized servicer.
2) Any Additional costs for services not specifically covered by this Agreement.
4) Incidental, consequential, or secondary damages or delay in rendering service under this Agreement or loss of use during the period that the covered product is at an authorized service center or otherwise awaiting parts.
5) Transportation, parts, or repair due to normal wear and tear and items normally designed to be periodically replaced by the purchaser during the covered product’s life, including but not limited to blades, belts, batteries, light bulbs, hoses, etc.; loss or damage caused by war, invasion, or act of foreign enemy, hostilities, civil war, rebellion, riot, strike, labor disturbances, lockout, or civil commotion; damage from accident, abuse, misuse, mishandling, introduction of foreign objects into the covered product, failure to follow the manufacturer’s instructions, and external causes including third party actions, fire, theft, insects, animals, exposure to weather conditions, lightning, windstorm, sand, dirt, hail, earthquake, flood, water, acts of God or consequential loss of any nature.
6) Nonfunctional or aesthetic parts, including but not limited to plastic parts, knobs, rollers, baskets, scratches, peeling, and dents.
7) Accessories or attachments used in conjunction with a covered product, other than mower decks used on lawn tractors, lawn and garden tractors, and commercial mowers.
8) Service where no problem can be found.

Operator stationOperator station
Color-coded controls are easy to identifyColor-coded controls are easy to identify

The operator station is designed to provide superior operator comfort for many different operators:

  • Large foot platform
    • Ample legroom for comfortable operation
    • Optional rubber foot mat (not shown) available for extra foot comfort
    • Optional foot pegs (not shown) available to allow various positions for operator’s feet
  • Adjustable seat fore-aft position, armrests, and spring suspension to suit each operator
    • Control panel conveniently located to the right of the seat
  • Adjustable motion-control levers
    • Upper and lower positioning combined with forward and rearward tilt offers more legroom and hand positions
Comfortable seat
Comfortable seat with armrestsComfortable seat with armrests
Seat backSeat back

The comfortable seat has two suspension springs and no-tools, fore-aft seat adjustment that can be used by the operator while seated. The Z515E has:

  • A medium-back, 18-in. (45.7-cm) seat with thick foam padding for good support and comfort
  • Armrests as standard equipment
  • 3-in. (7.6-cm) fore-aft adjustment to make each operator comfortable
Seat suspension
Long, steel seat springs (left)Long, steel seat springs (left)
Long, steel seat springs (right)Long, steel seat springs (right)

Two long, steel springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride.

Foot pegs (standard on R Series, optional on E and M Series)
Foot platform with foot pegs installedFoot platform with foot pegs installed

Foot pegs provide you with more foot placement options and act as convenient handles to remove and replace the foot platform.

NOTE: Foot pegs are standard on the Z530R and Z545R and an optional extra-cost kit on the Z515E and Z530M.

Cup holder and storage compartment
Dual beverage holderDual beverage holder
Storage compartmentStorage compartment

The dual beverage holder on the left fender and storage compartment on the right fender add convenience for the operator:

  • Room for two drink containers of various sizes for longer mowing jobs
  • Storage compartment provides a safe and convenient location to store tools and supplies

NOTE: A storage compartment cover is standard on the Z530R and Z545R.

Control console includes an easy-to-read fuel gauge
Control consoleControl console
Electric fuel gaugeElectric fuel gauge

The control console is located to the right of the operator station and includes the following:

  • Digital display
    • Easy-to-read fuel gauge keeps track of the amount of fuel remaining to minimize time spent stopping to refuel.
    • Hour meter shows operating hours to keep maintenance on schedule.
  • Ignition switch
  • Power take-off (PTO) control (yellow)
  • Engine speed control (orange)
  • Spring-loaded engine choke control so it is not inadvertently left on
  • Space for an optional light kit switch
  • Space for an additional electric control switch
Fuel sight widow and fill cap
Fuel sight windowFuel sight window
Fuel sight window and fuel fill capFuel sight window and fuel fill cap

A conveniently located fuel-sight window allows the operator to view the fuel level when approaching the vehicle from the front:

  • Semi-clear material makes seeing how much fuel is in the tank quick and easy.
  • Large, 3-in. (7.6-cm) diameter fuel-fill opening reduces the chance of spilling when adding fuel.
    • Fuel-fill opening is low and angled to make adding fuel easy.
  • Cap is tethered to the fuel tank.
    • Less chance of fuel cap getting lost
Mower deck lift and cut height
Mower lift pedal and cut-height adjustmentMower lift pedal and cut-height adjustment
Mower deck cut-height adjustment and transport lockMower deck cut-height adjustment and transport lock

Mower deck cutting height can be adjusted from 1 in. (2.5 cm) to 4 in. (10.2 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:

  • A convenient foot-lift pedal is used to raise the mower deck for setting cut height or locking mower in the raised or transport position.
  • A lift-assist spring is provided to optimize the effort it takes to raise the mower deck.
Cut-height adjustment and transport lock
  • To adjust cut height, simply push down on the foot-lift pedal, place the cut-height pin in the desired location, and release the foot-lift pedal to lower the deck to the chosen height.
  • Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
  • To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever, and release the foot-lift pedal to lower the deck to the chosen height.
Adjustable steering levers
Motion-control levers in operating positionMotion-control levers in operating position
Motion-control levers in park positionMotion-control levers in park position

Motion control levers are shaped and located for operator comfort and ease of control.

18-position control lever adjustment, low18-position control lever adjustment, low
18-position control lever adjustment, high18-position control lever adjustment, high

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:

  • Combined height and fore/aft adjustments provide 18 positions
  • Increased operator comfort with more leg room and more hand positions
  • Adjustable for most precise control of the machine
Tracking adjustment
Tracking adjustment boltsTracking adjustment bolts
Tracking adjustment toolTracking adjustment tool

Tracking adjustment can be made from the operator seat with the provided tool.

Park brake
Park brake leverPark brake lever
Motion-control levers in park positionMotion-control levers in park position

The park brake is conveniently located:

  • Large lever is easy to use.
  • Park brake effectively holds the machine in the parked position.
  • Park brake must be engaged (in the upper position) to start the engine.
  • Motion-control levers must be in the outward position for the engine to crank.

Brake-and-go logic:

  • Park brake must be engaged for the engine to crank.
  • Once the engine is started, the park brake must be disengaged before operating the motion-control levers.
  • Park brake must be disengaged before operating the motion-control levers or the engine will stall.
Safety interlock system
Interlock switch is located under the seatInterlock switch is located under the seat

Safety interlocks help prevent operating in an unsafe way:

  • The parking brake must be engaged for the engine to crank.
    • Parking brake is set when motion-control levers are in the outward position.
  • The operator presence system requires the operator to be in the seat to operate the PTO.
  • The key switch interlock prevents bypass starting.
  • If the operator leaves the seat when the PTO is engaged, the controls are in the operating position, or the parking brake is not set, the engine will shut down.
  • The seat interlock switch disengages the mower when the operator leaves the seat.
  • The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.
ZTrak™ Z515E with 48A Mower DeckZTrak™ Z515E with 48A Mower Deck
ZTrak Z515E with 48A Mower DeckZTrak Z515E with 48A Mower Deck

The 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) Accel Deep Mower Decks are a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:

  • 4.83-in. (12.3-cm) (48A/54A) or 4.91-in. (12.5-cm) (60A) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance.
    • Optional MulchControl™ system provides superior mulching performance and versatility.
  • Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
  • Mower deck is suspended from the vehicle for a smooth and level cut.
    • Adjustable mower wheels, positioned just above ground level, help reduce scalping.
  • 0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Compatibility
Mower Deck Models Mulching (optional) Material collection (optional)
48-in. (122-cm) Accel Deep (48A) Z530M MulchControl system 6.5-bu (230-L) two-bag Power Flow™ system
54-in. (137-cm) Accel Deep (54A) Z515E, Z530M MulchControl system 6.5-bu (230-L) two-bag Power Flow system
60-in. (152-cm) Accel Deep (60A) Z515E, Z530M MulchControl system Not available
Productivity – getting the job done fast
Trim side of Accel Deep Mower DeckTrim side of Accel Deep Mower Deck

Deep mower-deck forging delivers high productivity, which gets the job done fast. It allows room for the cut and suspended material to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:

  • Greatly improves the mower’s capacity to maintain excellent mowing performance and cut quality in difficult mowing conditions and at higher speeds
  • Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.

Large discharge opening is both high and wide to handle more material:

  • Gives a smooth, even discharge of clippings at all mowing speeds
  • Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
Cleanliness – for the mower and the operator
Accel Deep Mower Deck, trim sideAccel Deep Mower Deck, trim side

Cleaning a mower deck is one of the most frequent maintenance activities. The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:

  • There are few places to catch and hold material on top and underneath the deck.
    • Top of deck stays cleaner, reducing time and effort needed for cleaning and service
    • Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
    • Less need to clean and remove buildup of material from underside of deck
  • The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck.
    • Limited amount of material drifts onto the operator and mower deck
    • Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
    • Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.
Mower wash portMower wash port
Mower wash port with hose connectorMower wash port with hose connector

A wash port and hose connector are provided to make cleaning the underside of the mower deck easy.

Superior durability is designed in
Hinged spindle pocket coverHinged spindle pocket cover
Double-captured mower wheelDouble-captured mower wheel

Accel Deep Mower Decks have strong spindle pockets to keep the blades aligned, even after years of tough service:

  • Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
  • Ribs in the deck shell add strength where it is needed.
  • Mower wheels are double captured:
    • Provides greater strength and durability for longer, trouble-free life
    • Single-bolt adjustment makes setting wheels to the correct cutting height quick and easy
  • Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.
  • A 5/8-in. (16-mm) diameter solid-steel rod side guard provides extra strength and protection.
  • Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
Versatility – easy to change between side discharge, mulch, and bagging modes

Accel Deep Mower Decks are designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:

  • With MulchControl, changing from side discharging to mulching or vice versa is done with the simple flip of a lever.
  • On 48A and 54A Mower Decks, the Power Flow rear bagger can be used with MulchControl by simply using the MulchControl lever to move the mulch baffle to the side-discharge position.
MulchControl option

The MulchControl system for Accel Deep Mower Decks is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect lawn material.

Advantages of mulching grass clippings include:

  • A beautiful looking lawn
  • Grass clippings not blown onto the operator, driveways, or flower beds
  • Less fertilizer required
  • Elimination of the effort needed to dispose of clippings
How MulchControl works
MulchControl baffle in open positionMulchControl baffle in open position
MulchControl baffle in closed positionMulchControl baffle in closed position

MulchControl is an innovative, simple design that is easy to use and maintain:

  • The MulchControl attachment includes baffles to control the flow of material under the deck.
    • The MulchControl baffle, or divider, between the left and middle spindles is about halfway down. The height is designed to balance the mulching and side-discharge modes.
    • When the MulchControl baffle is open, the divider between the left and middle spindles passes a portion of the material to the discharge opening, along with the material from the middle and right spindle areas.
    • When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.
MulchControl handleMulchControl handle
  • The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
    • The operator is required to get off the machine in order to engage or disengage mulch mode.
  • Changing from mulching to side discharge or vice versa takes only a few seconds.

MulchControl is well-suited to the following mowing situations:

  • Usually mulch, but side discharge when grass gets too long
  • Usually side-discharge, but would like to be able to close the chute to control clippings
  • Always mulch a main lawn, but often side discharge secondary lawns
  • Bag clippings, but want to go farther before emptying bags

MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge or bagging when needed.

While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps reduce the amount of material being discharged. Other times this could work as a disadvantage:

  • When cutting strong southern grasses, such as Zoysia and Bermuda
  • When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
  • When optimum bagging and lawn cleanup is desired
6.5-bu (230-L) Power Flow rear bagger (not available for 60-in. [152-cm] Mower Deck)
Power Flow rear baggerPower Flow rear bagger

An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available. It provides an efficient means of collecting grass clippings and leaves:

  • The Power Flow blower and chute are easy to install.
  • The Power Flow blower swings out for easy cleanout and cleanup. The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
    • Easy-to-attach Power Flow blower (ordered separately)
    • Easy-to-attach chute (ordered separately)
    • Air exhaust duct
    • Convenient spring-latch
    • Airflow fill indicator
    • Quik-Tatch™ mounting
    • Sealed hopper top
    • Loose-knit bags available
    • Hopper kit comes with ballast bracket

Get superior performance and reliability with a large 44.2-cu in. (724-cc) displacement engine that has many premium features:

  • Easy inspection and removal of any debris that may have collected using two large cleanout ports that are integrated into the engine shroud over the cylinder heads.
  • Engine service times, reliability, and life are increased with the use of premium engine oil and air filtering systems, as well as the cooling design.

Experience plenty of power and torque to handle tough mulching, mowing, and bagging conditions with the 24-hp (17.9-kW) V-twin engine:

  • Greater torque, lower vibration, and improved sound quality from the V-twin cylinder design
  • Fast starts with electronic ignition
  • Long engine life with cast-iron cylinder liners
  • Excellent power and fuel economy with overhead valves
  • Reliable operation with in-line fuel filter
Separate engine speed lever and choke leverSeparate engine speed lever and choke lever

The engine speed lever and choke control lever are separate controls:

  • The engine speed lever is easy to use – there is no need to worry about pushing too far and engaging the choke like on single throttle/choke lever systems.

The engine area is open for visibility to important service points, making it easy to inspect and clean the engine.

4.5-gal. (17-L) fuel capacity for extended mowing times
Fuel tank and fuel sight windowFuel tank and fuel sight window
Fuel fill capFuel fill cap

The 4.5-gal. (17-L) fuel tank is easy to fill and has a sight-level window and dash-mounted gauge:

  • Longer times between refills with the large tank
  • Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine
  • Easy filling and minimum chance of spills with a large, 3-in. (7.6-cm) diameter fuel opening that is low and angled

John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.

Clean, open operator stationClean, open operator station
Standard folding ROPSStandard folding ROPS

The spacious operator station has been designed for comfort, visibility, and ease of use:

  • Getting on and off easy with the flat operator platform.
  • Convenient-to-use controls are located close to the operator.
  • Operator controls are color coded and designed for easy identification and operation.

The ROPS and seat belt work in conjunction to provide a protective zone around the operator:

  • It reduces the operator’s risk of being crushed under the vehicle should it overturn.
  • In most situations, the ROPS limits the overturn to little more than 90 degrees.
  • When used with a seatbelt, the ROPS is very effective in preventing deaths and serious injuries.
    • Use of the seat belt is recommended when operating with ROPS in the upright position.
ROPS folded at intermediate positionROPS folded at intermediate position
ROPS folded downROPS folded down

Foldable ROPS and retractable seat belt are standard equipment:

  • Handles on the position pins provide a good grip and make changing the angle of the ROPS easier.
  • The door height of most garages will accommodate the machine with ROPS in the fully raised position.
    • Easy-fold ROPS improves the ability to store the ZTrak™ mower in structures with a lower door opening.
Model Height at top of ROPS in fully raised position
Z515E, Z530R 70.1 in. (178 cm)
Z530R, Z545R 70.7 in. (179.6 cm)
Front and side lights (option on Z515E and Z530M)
Front and side lights (Z545R shown with optional angled steering levers)Front and side lights (Z545R shown with optional angled steering levers)

The attractive design includes a provision for light-emitting diode (LED) lighting:

  • Two front lights face forward for front visibility.
  • Side lights are positioned to provide excellent visibility of the mower deck.

NOTE: Lights are standard on the Z530R and Z545R and optional on the Z515E and Z530M.

Formed and welded steel frame
Solid steel tube front frameSolid steel tube front frame
Strong rear frame for support and protectionStrong rear frame for support and protection

A strong, welded steel frame provides solid, reliable support for the machine components and operator:

  • Heavy-duty 1.5- x 2-in. (38- x 51-mm) frame tubing for durability
  • Rear frame provides solid support and protection for the engine
Rear hitch (option on Z515E and Z530M)
Rear hitch shown with optional rear bumperRear hitch shown with optional rear bumper

Strong frame is designed to accommodate a rear hitch that can be used to pull a variety of lawn equipment:

  • Can support up to 100 lb (45.4 kg) of tongue weight
  • Can pull equipment weighing up to 250 lb (113.4 kg)

NOTE: The rear hitch is standard on the Z530R and Z545R and optional on the Z515E and Z530M.

Large, smooth-riding front caster wheels
Large caster wheelLarge caster wheel
Caster wheel spindle housingCaster wheel spindle housing

Large front caster wheels provide a smooth ride and level cut:

  • Large, 13×5.0-6 tires travel over bumps more smoothly
  • Pneumatic tires for the smoothest ride
  • Better performance on slopes

Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles:

  • Long, trouble-free life
  • Designed to give smooth turns without damage to the turf
  • Large rear drive wheels for a smooth ride and level cut
Large rear tires
Large diameter rear tireLarge diameter rear tire

Rear tires have high-quality tread and optimum size for superior traction and smooth ride:

  • Tire size is 22×9.5-10.
  • Tread pattern is optimized for excellent traction and minimum turf damage.
Unitized hydrostatic transmissionUnitized hydrostatic transmission

Dual unitized transmissions efficiently power the ZTrak™ mower forward and reverse and provide steering capability:

  • Experience excellent hillside stability with transmissions that are set low in the vehicle.
  • Tuff Torq® TZT7-D transmissions are reliable and durable.
    • Beefed-up 1-in. (2.5-cm) axles for greater strength
  • Maintenance-free, unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.
  • Four-bolt hubs provide a reliable and convenient wheel-mounting system.







Transmission expansion tank and tow-valve leverTransmission expansion tank and tow-valve lever
Tow valve control leverTow valve control lever

Tow-valve controls are provided for each transmission and are located on the transmission near the expansion tanks:

  • Easy to reach and use
  • Allow the vehicle to be moved without the engine running
Adjustable steering levers
Motion-control levers in operating positionMotion-control levers in operating position
Motion-control levers in park positionMotion-control levers in park position

Motion control levers are shaped and located for operator comfort and ease of control.

18-position control lever adjustment, low18-position control lever adjustment, low
18-position control lever adjustment, high18-position control lever adjustment, high

The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:

  • Combined height and fore/aft adjustments provide 18 positions
  • Increased operator comfort with more leg room and more hand positions
  • Adjustable for most precise control of the machine

Tuff Torq is a trademark of Kanzaki Kokyukoki Mfg. Co., Ltd.

Example quick-response (QR) code labelExample quick-response (QR) code label

John Deere riding lawn mowers are equipped with a QR code label that links to an owner support website. The label can be found on the rear fender, to the left of the seat.

Upper portion of owner support web pageUpper portion of owner support web page
Lower portion of owner support web pageLower portion of owner support web page

The owner support website is formatted for smart phones and available without setting up an account and password. The QR code includes the mower’s serial number, enabling the owner support website to provide a maintenance schedule, service parts, attachments, how-to guide, videos, warranty information, and an operator’s manual for the specific mower.



The owner support website also allows users to purchase service parts, schedule dealer service, purchase extended warranties, and download the Equipment Mobile app. The Equipment Mobile app enables users to maintain a shared digital service record with their dealer.

Convenient service internal decal
Service interval decalService interval decal

A convenient service interval decal provides basic maintenance information:

  • Provides a quick reference for keeping recommended service up to date
  • Located under the seat for easy viewing
Engine service
Cleanout port and air filter accessCleanout port and air filter access

The engine is easy to service and takes a minimal amount of time:

  • Air filter is on top of the engine and easily removed with two wingnuts.
  • Cooling fin cleanout ports are located under the air cleaner cover.
  • Engine oil fill/check tube is easy to see and reach at the top of the engine.
Easy-to-access oil fill/check tubeEasy-to-access oil fill/check tube
Mower service
Foot platform easily removed for access to mowerFoot platform easily removed for access to mower

The footrest area is removable without tools to easily access the mower deck for service:

  • Easy to clean grass off the top of the mower
  • Provides convenient access to the mower drive
Flat-top deck and flip-up spindle coverFlat-top deck and flip-up spindle cover
Mower deck leveling gauge and tracking wrenchMower deck leveling gauge and tracking wrench

Accel Deep™ Mower Decks have features that make them easy to service:

  • Flat-top design minimizes places for debris to collect.
  • Spring-loaded, flip-up belt guards make removing debris easy.
  • Deck-leveling gauge is conveniently stored on the machine.
Tracking adjustment
Tracking adjustment boltsTracking adjustment bolts
Tracking adjustment toolTracking adjustment tool

Tracking adjustment can be made from the operator seat with the provided tool.

MowerPlus home screenMowerPlus home screen
MowerPlus maintenance screenMowerPlus maintenance screen
Overview

Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.

Benefits
  • Engine hours, fuel level, and battery health (as compatible)
  • Mowing history with time, distance, area, and speed
  • Current day and five-day weather forecast based on location
  • Walk-through setup guides
  • Expert mowing tips
  • Useful attachments for future purchase
  • Periodic maintenance reminders
  • Safety instructions



To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.

Additional details

MowerPlus connectors (sold separately)

MowerPlus Hour Meter ConnectorMowerPlus Hour Meter Connector
MowerPlus Deluxe Smart Connector, with a phoneMowerPlus Deluxe Smart Connector, with a phone

Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.



BUC10510 MowerPlus Hour Meter Connector is for use with:

  • Model year 2003 to 2020 100 Series Tractors, including all models with an E, D, LA, or L prefix
  • Model year 2015 to 2020 S240 Tractors (serial number -880,000)
  • S100, S110, S140, and S220 Tractors



BUC10929 MowerPlus Deluxe Smart Connector is for use with:

  • All S120, S130, S160, S170, and S180 Tractors
  • Model year 2021 and newer S240 Tractors (serial number 880,001-)
  • Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)



BUC10537 MowerPlus Smart Connector is for use with:

  • Model year 2016 and newer Select Series X300 and X500 Tractors



All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.



MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android™ operating systems.



Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.

Key Specs
Engine power 24 hp   17.9 kW
Engine model number M44 Extended Life Series (ELS)
Forward speed 0-8 mph   0-12.9 km/h
Front caster tires 13×6.5-6
Drive tires 22×9.5-10
Seat back height Medium back with armrests, 18 in.   45.7 cm
Width of cut Accel Deep™ mower deck, 54 in.   137 cm   Accel Deep mower deck, 60 in.   152 cm
Mulching system Optional MulchControl™ attachment, 54 in.   137 cm   Optional MulchControl attachment, 60 in.   152 cm
Warranty 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Engine
Power 24 hp   17.9 kW
Model number M44 Extended Life Series (ELS)
Displacement 44.2 cu in.   724 cc
Cylinders V-twin
Lubrication Full pressure with replaceable filter, capacity, 2 U.S. qt   1.9 L
Type Overhead valve
Battery 12 V   300 CCA
Choke/speed control Separate levers
Cooling method Air
Fuel tank capacity 4.5 U.S. gal.   17 L
Fuel gauge Electric gauge and fuel level sight line
Drive train
Dual hydros Tuff Torq® TZT7-U with 1-in. (2.5-cm) axles
Travel speed
Forward speed 0-8 mph   0-12.9 km/h
Reverse speed 0-4 mph   0-6.4 km/h
Speed and direction control Twin levers
Control adjustment 2-height/9-fore-aft, 18 positions
Chassis
Frame Heavy-duty frame tubing
Primer/paint E-coat/powder
Front caster tires 13×6.5-6
Front caster bearings Sealed ball bearings
Drive tires 22×9.5-10
Hour meter Yes
Service interval decal Yes
Storage compartment Yes
Cup holder Yes
Maximum towing capacity 250 lb   113 kg
Seat
Seat back height Medium back with armrests, 18 in.   45.7 cm
Fore-aft adjustment While seated, 3 in.   7.6 cm
Seat suspension Two springs
Lift system
Type Foot lift
Mower cut height 1-4 in.   2.5-10.2 cm
Cut height increments 0.25 in.   0.64 cm
Preset cut height Yes
Mower deck
Width of cut Accel Deep mower deck, 54 in.   137 cm   Accel Deep mower deck, 60 in.   152 cm
Type Side discharge
Mower deck material 10 gauge   0.135 in.   3.4 mm
Mower drive system V-belt
PTO
Type Electric, 105 lb-ft   142.4 Nm
Drive V-belt
Dimensions
Wheelbase 49.2 in.   1250 mm
Overall length 76.9 in.   1953 mm
Width without mower 46.6 in.   1184 mm
Width with mower 48A: 62.8 in.   1595 mm   54A: 68.6 in.   1742 mm   60A: 73.4 in.   1864 mm
Width with mower (deflector raised for storage) 48A: 53.9 in.   1370 mm   54A: 59.7 in.   1517 mm   60A: 65.6 in.   1667 mm
Height ROPS in folded position: 48.6 in.   1235 mm   ROPS in raised position: 71.1 in.   1806 mm
Weight With mower and fuel, 54A, 776 lb   353 kg   With mower and fuel, 60A, 784 lb   356 kg
Operation
Rollover protective structure (ROPS) Yes
Slope operating limit 15 degrees, 10 degrees with an MCS
Operator presence system Yes
Park brake interlock Yes
Operator video Yes
Buyer’s notes
Note 1 Mower wash port makes cleaning the deck easier
Note 2 Flip-up foot platform for easy service access
Note 3 18-position adjustable motion-control levers
Warranty 4 year or 300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Optional attachments
Mulching system Optional MulchControl attachment, 54 in.   137 cm   Optional MulchControl attachment, 60 in.   152 cm
Rubber floor mat Optional
Sun shade Optional
Mounted sprayer No
Storage cover No
Light kit Optional 4-point LED Light kit
Material collection system Power Flow rear bagger, 6.5 bu   230 L   Not available on 60A

Parts & Accessories

MYGREENWAY

Order parts, view your invoices, or request equipment services.

portal login

Customer Support

We’ve opened a Customer Contact Center to help you with all your Greenway needs!

Call (888) 237-7447
Powered by SIEQ
Select options
