Warranty Package Coverage Includes:
Extension of John Deere factory comprehensive warranty for labor, and repair or replacement parts in the event your covered product fails to operate as a result of a mechanical or electrical failure caused by defects in workmanship and/or materials. At our discretion, replacement parts used in covered repairs will be either new Genuine John Deere parts or Genuine John Deere remanufactured parts or components furnished by John Deere. Free pickup and Delivery within a twenty five mile radius.

Warranty Package Coverage Does Not Include:
1) Any product used in a commercial setting or rental basis.
2) Any services not authorized by the administrator or performed by an unauthorized servicer.
3) Any Additional costs for services not specifically covered by this Agreement.
4) Incidental, consequential, or secondary damages or delay in rendering service under this Agreement or loss of use during the period that the covered product is at an authorized service center or otherwise awaiting parts.
5) Transportation, parts, or repair due to normal wear and tear and items normally designed to be periodically replaced by the purchaser during the covered product’s life, including but not limited to blades, belts, batteries, light bulbs, hoses, etc.; loss or damage caused by war, invasion, or act of foreign enemy, hostilities, civil war, rebellion, riot, strike, labor disturbances, lockout, or civil commotion; damage from accident, abuse, misuse, mishandling, introduction of foreign objects into the covered product, failure to follow the manufacturer’s instructions, and external causes including third party actions, fire, theft, insects, animals, exposure to weather conditions, lightning, windstorm, sand, dirt, hail, earthquake, flood, water, acts of God or consequential loss of any nature.
6) Nonfunctional or aesthetic parts, including but not limited to plastic parts, knobs, rollers, baskets, scratches, peeling, and dents.
7) Accessories or attachments used in conjunction with a covered product, other than mower decks used on lawn tractors, lawn and garden tractors, and commercial mowers.
8) Service where no problem can be found.
9) Breakdowns that are not reported within the terms of this Agreement.

Maintenance Package Includes:
Worry free maintenance plan, complete service, free pickup and delivery within a twenty five mile radius.

Maintenance plan includes services listed below:

1) Change Engine Oil and Filter

2) Change Air Filter and Pre-Cleaner

3) Change Spark Plugs

4) Change Fuel Filter

5) Check Transmission Oil, if applicable

6) Check Engine Coolant, if applicable

7) Change Hydraulic Filter

8) Sharpen Blades

9) Check Safety Systems

10) Level Mower Deck

11) Check and Adjust Tire Pressure

12) Check Wheel Bolts

13) Check and Tighten Loose Hardware

14) Check Engine Cooling Fins

15) Check Battery

16) Check Electrolyte Level and Battery Voltage

17) Clean Radiator Fins and Air Intake Screens

18) Clean Under Mower Deck

19) Lubricate Front Axle Pivot

20) Lubricate Front Spindles

21) Lubricate Front Wheel Bearings

22) Lubricate Mower Spindles

23) Lubricate Mower Gage Wheels

24) Check Belts and Mower Adjustments

We will provide transportation, labor, and repair or replacement parts in the event your covered product fails to operate as a result of a mechanical or electrical failure caused by defects in workmanship and/or materials. At our discretion, replacement parts used in covered repairs will be either new Genuine John Deere parts or Genuine John Deere remanufactured parts or components furnished by John Deere.

Maintenance Coverage Does Not Include:
1) Any services not authorized by the administrator or performed by an unauthorized servicer.
2) Any Additional costs for services not specifically covered by this Agreement.
4) Incidental, consequential, or secondary damages or delay in rendering service under this Agreement or loss of use during the period that the covered product is at an authorized service center or otherwise awaiting parts.
5) Transportation, parts, or repair due to normal wear and tear and items normally designed to be periodically replaced by the purchaser during the covered product’s life, including but not limited to blades, belts, batteries, light bulbs, hoses, etc.; loss or damage caused by war, invasion, or act of foreign enemy, hostilities, civil war, rebellion, riot, strike, labor disturbances, lockout, or civil commotion; damage from accident, abuse, misuse, mishandling, introduction of foreign objects into the covered product, failure to follow the manufacturer’s instructions, and external causes including third party actions, fire, theft, insects, animals, exposure to weather conditions, lightning, windstorm, sand, dirt, hail, earthquake, flood, water, acts of God or consequential loss of any nature.
6) Nonfunctional or aesthetic parts, including but not limited to plastic parts, knobs, rollers, baskets, scratches, peeling, and dents.
7) Accessories or attachments used in conjunction with a covered product, other than mower decks used on lawn tractors, lawn and garden tractors, and commercial mowers.
8) Service where no problem can be found.

22-hp (16.4-kW) engine

A 22-hp (16.4-kW) V-twin engine has plenty of power and torque to handle tough mowing, mulching, and bagging:

• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Electronic ignition for fast starts
• Spring-return feature to ensure the operator does not mistakenly leave the throttle lever in the choke position
• Cast-iron cylinder liners for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
  • More effective when operating the tractor on an incline

Fuel tank

Convenient fuel filler opening

• The capacity is 2.4 U.S. gal. (9.1 L).
• The fuel filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • A tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.

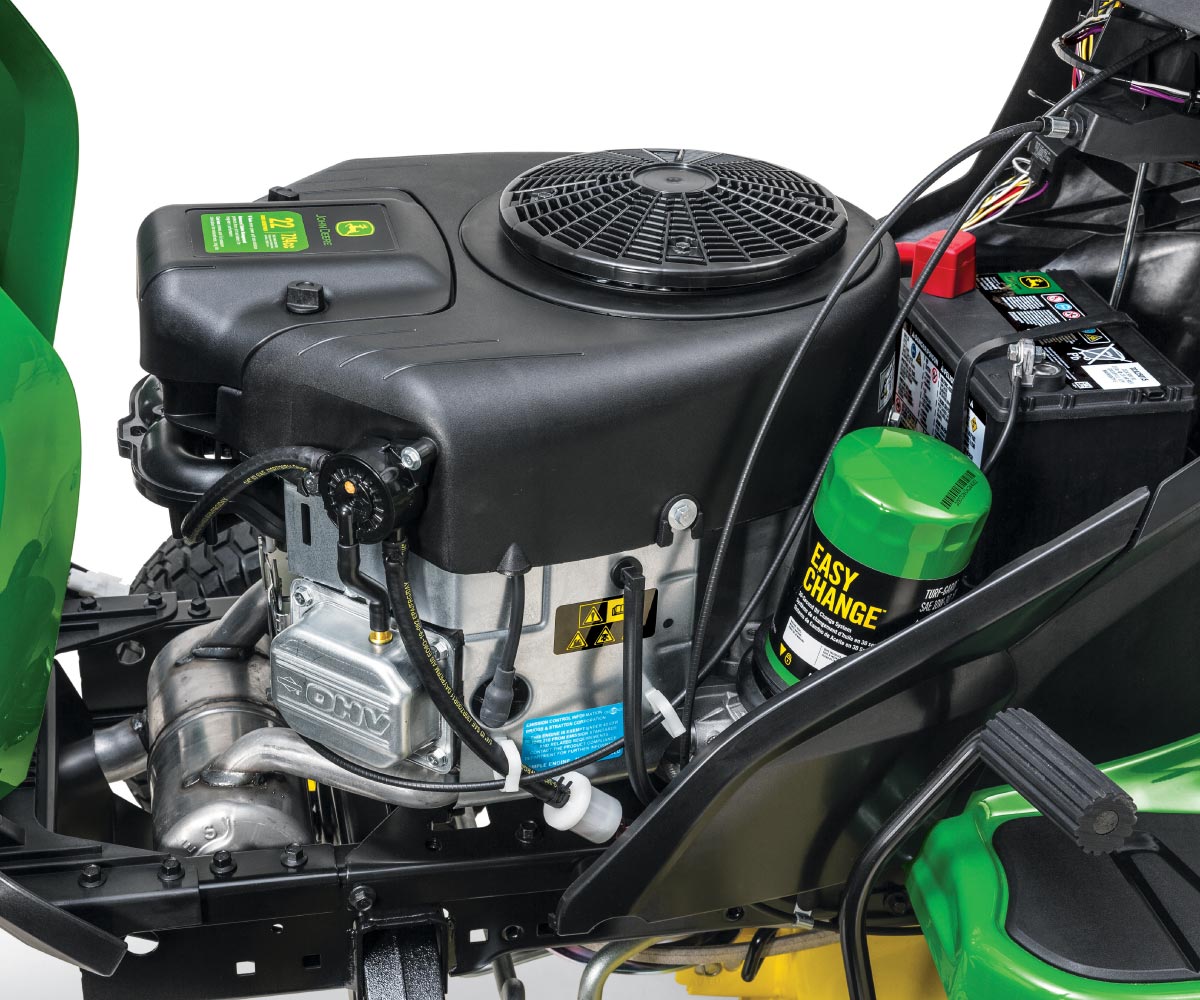

John Deere Easy Change 30-second oil change system

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

• A synthetic filter material is used for more predictable filtering and longer life.
• Filtering capacity is greater than with a standard oil filter.
  • More filter surface area
  • More oil flow capacity
• The system has 40 percent more oil volume.
• The oil and engine run cooler.
• The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.
• The risk of spilling during oil service is greatly reduced.
• Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.
• This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With  the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

Solid one-piece frame

Solid one-piece frame

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

• Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
• One-piece, steel fender deck is bolted to the frame.

Cast-iron front axle will not bend

Front axle and wheel spindle

The front axle is constructed of solid cast iron that will not bend:

• Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
• Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
• Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

Front bumper protects the tractor

Front bumper

Front bumper

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

• Additional front-end protection
• Attractive, bold style

CargO Mount™ system makes installation of rear bagger and other attachments easy

Rear CargO Mount points

Front CargO Mount points at the top of the dashboard

Rear bagger is mounted with CargO Mount points

Rear bagger is mounted with CargO Mount points

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.

S140 Tractor with front blade, weights, and tire chains

S160 Tractor with snow blower, weather enclosure, weights, and tire chains

An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.

Equipment available for snow removal includes:

• 44-in. (112-cm) Snow Blower
• 46-in. (117-cm) Front Blade
• Tire chains or TerraGrip traction belts
• Weather enclosure
• Weights

Two-pedal speed/direction controls

Forward speed control pedal in use

A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy. Side-by-side foot pedals control the speed and direction of travel:

• Automotive-type accelerator controls ensure easy operation.
• Operator can change direction without lifting foot off the platform.
• Large pedal surface gives superior operator comfort.

Hydrostatic transmission

Appropriate transmissions are used in each model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:

• Tuff Torq TLT200 – S100, S110, S120, S130, S140, and S160
• Tuff Torq K46 – S170 and S180

Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Mfg. Co., Ltd.
