- Adjust to job with flexible wheel spacing
- Premium cab for the ultimate operating experience
- Heavy-duty 3-point hitch lift capacity for implement versatility
- Focus on the job while AutoTrac™ guidance keeps on track
- Take charge with PowrQuad™ PLUS and Powr8™ transmissions
- Power bulge and torque reserve pull through the tough spots
- EPA Final Tier 4 (FT4) compliant engines with maximum fluid efficiency

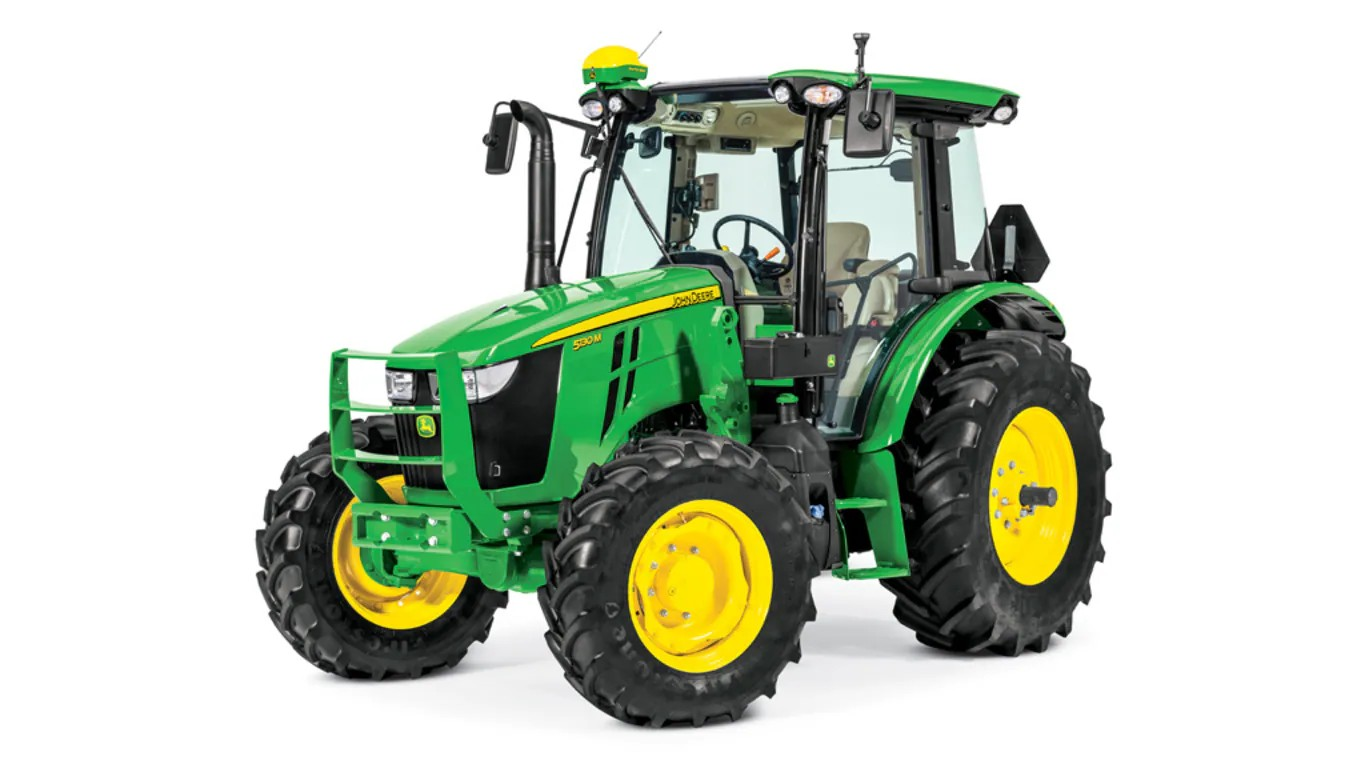

5130M Utility Tractor
- PowrQuad™ PLUS or Powr8™ transmission options
- Choose climate-controlled cab or open station
- Hitch lift capacity starting at 6,975 lb (3,164 kg) and optional up to 7,868 lb (3,569 kg)
*Stock photo may not represent actual options. See dealer for complete details.
Request More Information - New Equipment
description
Specifications
Engine description | John Deere PowerTech™ 4045 EWL |
Engine displacement | 4 cylinder: 4.5 L276 cu in. |
Rated engine power | At 2200 rpm: 95.8 kW130 hp |
Maximum engine power | 99.9 kW133.9 hp |
Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW115 hp |
Maximum PTO power | |
Transmission type | Standard: PowrQuad™ PLUS 16F/16ROptional: Powr8™ 32F/16RPowr8™ 32F/16R with creeper |
Hydraulic pump rated output | 97 L/min25.6 gpm |
Rear hitch category (SAE designation) | Category 2; convertible to 1 |
Base machine weight | 3964 kg (8,740 lb) |
Maximum PTO power at rated engine speed with intellegent power management (IPM) | |
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | |
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | |
ENGINE SPECIFICATIONS | |
Description | John Deere PowerTech™ 4045 EWL |
Engine type | 4045HLV82 |
Engine family | NJDXL04.5317 |
Rated speed | 2200 rpm |
Aspiration | Turbocharged/air-to-air aftercooled |
Cylinders liners | Wet sleeved |
Emission level | Final Tier 4 |
After treatment type | DOC/SCR |
Displacement | 4 cylinder: 4.5 L276 cu in. |
ENGINE PERFORMANCE | |
Rated power | At 2200 rpm: 95.8 kW130 hp |
Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW115 hp |
Maximum PTO power | |
Intelligent Power Management (IPM) | |
Power boost | At 1900 rpm: 4 percent |
Maximum engine power | 99.9 kW133.9 hp |
Engine peak torque | At 1600 rpm: 541 Nm399 lb-ft |
Drawbar power | |
PTO torque rise | At 1600 rpm: 30 percent |
Fuel injection system and control | |
Air cleaner type | |
Maximum PTO power at rated engine speed with intellegent power management (IPM) | |
Maximum engine torque (without power boost at 1.600 engine rpm) | |
Maximum engine power PS (hp ISO) at max engine speed (EU 2016/1628) | |
Maximum engine power with intelligent power management (IPM) | |
Rated engine power PS (hp ISO) at rated engine speed (EU 2016/1628) | |
TRANSMISSION | |
Type | Standard: PowrQuad™ PLUS 16F/16ROptional: Powr8™ 32F/16RPowr8™ 32F/16R with creeper |
Reverser | Left hand, electrohydraulic |
Clutch; wet/dry | Wet |
Creeper | Powr8™ 32F/16R with creeper |
Integrated Electric Power Generation | |
HYDRAULIC SYSTEM | |
Type | Open center |
Pump rated output | 97 L/min25.6 gpm |
Available flow at a single rear SCV | 73 L/min19.3 gpm |
Available flow at front SCVs | |
Number of rear selective control valves (SCVs) | Standard: TwoOptional: Three |
Number of mid selective control valves (SCVs) | Standard: TwoOptional: Up to Three |
Number of front selective control valves (SCVs) | |
Joystick SCV control | Mechanical |
Auxiliary hydraulic features | |
SCV control | |
Available oil flow at a single rear SCV (200 Type) | |
Available oil flow at a single rear SCV (450 Type) | |
Available oil flow at a single rear SCV (450E Type) | |
REAR HITCH | |
Hitch draft control load sense type | Electrohydraulic |
Remote control valves available | Standard: TwoOptional: Three |
Hitch category (SAE designation) | Category 2; convertible to 1 |
Maximum lift capacity behind lift points | Standard: 3164 kg6975 lbOptional: 3569 kg7868 lb |
Lift capacity at standard frame | |
Sensing type | Lower link |
Rear axle differential lock | Electrohydraulic |
Maximum lift capacity directly at coupling points | |
Rear hitch lift capacity (SAE designation) | |
Throughout lift capacity, 610 mm behind the coupling points | |
DRAWBAR | |
Drawbar category | Category 2 |
Maximum vertical load | Road/field use (250-mm extended): 1450 kg3197 lbField use (350-mm extended): 1200 kg2646 lbField use (400-mm extended): 1200 kg2646 lb |
REAR POWER TAKE-OFF (PTO) | |
Type | Independent, 34.9 mm (1.375 in)Standard: 540/540 Economy (6 spline)Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
Engine rpm (at rated PTO speeds) | 540 at 2100 rpm540E at 1645 rpm1000 at 2100 rpm |
Economy PTO speeds | |
Reverse PTO speeds | |
Multispeed PTO option availability | |
Ground speed PTO option availability | |
PTO actuation | Electrohydraulic |
Engine rpm at rated PTO speeds (540/1.000) | |
Engine rpm at rated PTO speeds (540/540E/1.000) | |
Engine rpm at rated PTO speeds (540E/1000/1.000E) | |
FRONT HITCH | |
Category | Category 2 |
Electric power | |
Standard lift capacity | 1931 kg4257 lb |
Front power take-off (PTO) | 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
PTO speed | 1000 at 2200 rpm |
REAR AXLE | |
Type | Standard: FlangeOptional: Rack-and-pinion (Bar) |
Final drive type | Inboard planetary |
Differential controls | Electrohydraulic |
Axle type | |
Brakes, type and control | Hydraulic wet disc |
Rear differential lock | |
Load rating | |
FRONT AXLE | |
Type | Mechanical Front Wheel Drive (MFWD) |
Front axle differential lock | |
Load rating | |
TIRES | |
Rear | MFWD: 18.4R30 (460/85R30) R1W Radial |
Wheel tread range | MFWD: front: 1299-1997 mm51.1-78.6 in.rear: 1350-2286 mm53.1-90 in. |
Turning radius with brakes | MFWD: 3.85 m12.6 ft |
Turning radius without brakes | MFWD: 4.0 m13.1 ft |
Central Tire Inflation System (CTIS) | |
Front | |
TRACKS | |
Tread spacing | |
Drive type | |
Track width | |
Mid-rollers | |
STEERING | |
Type | |
BRAKES | |
Primary brake (foot brake) | |
Secondary brake | |
Park lock | |
MFWD braking | |
Front axle brakes | |
Auxiliary brakes | |
Hydraulic trailer brakes | |
Pneumatic trailer brakes | |
ELECTRICAL SYSTEM | |
Alternator size | Cab: 120 ampISOBUS/GreenStar™ Ready: 200 amp |
Battery options | 12 V |
Working lights | Standard: HalogenOptional: LED |
Type of bulb in headlight (Halogen, Zenon, LED) | Standard: HalogenOptional: LED |
Type of bulb in beacon (Halogen, Zenon, LED) | Optional: LED |
dB(A) rating for backup alarm | |
Total cold cranking amps | |
OPERATOR STATION | |
Rollover protective structure, OOS | |
Seat | Standard: Mechanical suspensionOptional: air ride or premium air ride |
Cab suspension | |
Instructional seat | Optional |
Display | Digital Dash Display with three liquid crystal displays (LCDs) |
Radio | Optional |
Inner cab volume | |
dB(A) rating | 78 dBA |
Cab glass area | |
Safety glass rating | |
Front visibility | |
DIMENSIONS | |
Wheelbase | 2350 mm92.5 in. |
Overall width | |
Overall length | OOS: 4081 mm160 in.Cab: 4089 mm161 in. |
Overall height | |
Drawbar clearance | |
Front axle center | |
Approximate shipping weight, Open;Cab | 4175 kg9185 lb |
WEIGHT | |
Base machine weight | 3964 kg (8,740 lb) |
Maximum ballast level | |
Maximum permissible weight | |
CAPACITIES | |
Crankcase oil volume | |
Fuel tank | 165.4 L43.7 U.S. gal. |
Diesel exhaust fluid (DEF) tank | 12.0 L3.17 U.S. gal. |
Cooling system | |
Transmission-hydraulic system | |
SERVICEABILITY | |
Interval for engine oil change | |
Interval for hydraulic/transmission oil change | |
Interval for engine coolant change | |
LOADERS | |
Loader | |
Lift capacity at full height | |
Maximum lift height | |
Leveling type | |
PRECISION AG | |
Guidance | Optional: AutoTrac™ with AutoTrac Basic |
Telematic | |
Remote diagnostics | |
Connectivity | |
MISCELLANEOUS | |
AutoTrac ready | Optional |
ISOBUS ready | Optional |
