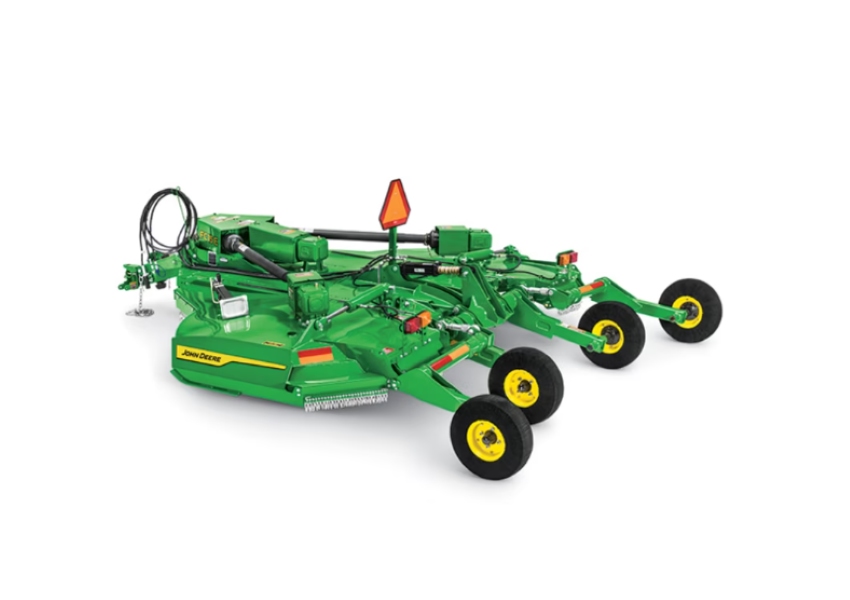

FC15E Flex Wing Rotary Cutter

  • 15 ft. cutting width
  • 540 PTO RPM
  • Newly-designed cutting chamber
  • Laminated or pneumatic tires

Request More Information - New Equipment

NOTE: Only for E, M, and R flex-wing models.

John Deere flex-wing rotary cutters lead the way with innovative design, superior durability, and proven performance. Valuable features are included such as a dome-shaped smooth deck, which prevent water and debris from accumulating on the top of the machine and makes it easy to clean up.

Built with a superior structural design that will satisfy different applications and segment desires, the single deck on the flex-wing cutters adds volume on the cutting chamber, allowing the machine to process more material and translating into an improvement in cut quality. The cutting chamber design allows the material to flow through the area and be discharged evenly throughout the width of the machine.

To help promote safe operation, John Deere rotary cutters are equipped with front and rear safety-chain shields and lighting kits to comply with U.S. regulations. John Deere rotary cutters continue to advance in value with larger, more powerful gearboxes, and updated constant-velocity (CV) drivelines.

Here are situations when a rotary cutter provides value:

  • Clipping pastures encourages grass growth, optimizing on valuable pasture acreage.
  • Cutting grass and stalks helps control insects.
  • Routine cutting keeps weeds from reseeding.
  • It is the most cost efficient way to cut roadsides, parks, cemeteries, airport fields, hydro, gas, and telephone easements, and all other types of open properties.
  • Cutting grass waterways encourages root development and helps prevent erosion.
  • Knocking down stalks such as cotton, corn, or milo speeds up decomposition. This is essential in no-till and minimum-till fields.
  • Clearing out brush is easy.
  • Control undergrowth and grass in orchards, vineyards, and groves.

Decide what model to use based on:

  1. The size of the area to mow versus the size of the machine – the bigger the area to mow, the bigger the mower needs to be in order to be efficient during mowing hours.
  2. The amount of time and frequency it will be used – for longer hours and more frequency, choose a heavier duty machine.
  3. Tractor compatibility – if there is a tractor the operator will be using, look for the tractor compatibility sheet to identify appropriate options.
  4. Choose the right features to satisfy specific needs – check out the value and benefits for each option to determine which one is the best fit for the work

John Deere flex-wing rotary cutters are available in three duty-level categories and four width sizes.

  • E-spec
    • Sizes: 3.7-m (12-ft) and 4.6-m (15-ft)
    • E-spec models cut brush up to 50.8 mm (2 in.) in diameter
    • Two tire options to choose from
    • Available in 540 rpm
    • Tractor compatibility – see chart
    • Great choice for the property owners with light-duty applications
  • M-spec
    • Sizes: 4.6-m (15-ft) and 6.1-m (20-ft)
    • M-spec models cut brush up to 76.2 mm (3 in.) in diameter
    • Includes additional options to satisfy most customer needs
    • Available in 540 or 1000 rpm
    • Good match for medium-duty customers and their versatile jobs
  • R-spec
    • Sizes: 3.05-m (10-ft), 4.6-m (15-ft), and 6.1-m (20-ft)
    • R-spec models cut brush up to 101.6 mm (4 in.) in diameter
    • Available in 540 or 1000 rpm (R10 only available in 540 rpm)
    • Excellent for road side mowing and more demanding applications

John Deere flex-wing rotary cutters are equipped with chains and lights as standard in all models.

Front and rear safety chains

Front safety chains

Chain shields offer protection to the operator and the area surrounding the cutter, yet allows uncut material to pass into the cutting chamber with minimal restriction.

Optional double-row chains for R-spec models

Lighting kit

Lighting kit

Lights are required for U.S. regulations on implements wider than 3.05 m (10 ft). All cutters come standard from the factory with lights.

Transport lock

Transport lock on back axle

Transport lock on wings

Always use the transport lock on the wings and back axle while transporting or moving the machine.

Five-year limited gearbox warranty provided on every John Deere rotary cutter

Five-year warranty on all flex-wing gearboxes

Five-year warranty on all rotary cutter gearboxes

John Deere is so confident in the reliability of the gearbox that rotary cutters come with a 5-year limited gearbox warranty.

There is also 1-year warranty on the complete machine, as well as drivelines and other components.

John Deere flex-wing rotary cutters are equipped with a single dome deck to allow material debris and water to be easily removed from the top of the machine.

Dome shape – clean top deck

R-spec machines

R-spec machines come standard with these features that will reduce overall maintenance time.

Maintenance-free bushings

Sealed hinges

There is no need for greasing, as the machine includes internal pre-greased bushings and sealed hinges.

Back torsional suspension

Torsional suspension

This requires minimal maintenance; operators only need to check that bolts are tightened every 40 hours.

  • 15 ft. cutting width
  • 540 PTO RPM
  • Newly-designed cutting chamber
  • Laminated or pneumatic tires

Key Specs

Cutting width
4.6 m
15 ft
Cutting capacity (diameter)
50.8 mm
2 in.
Tractor PTO HP range
37 kW
50 hp
Transport width
9.1 ft (2.8 m) at wing wheels
Deck thickness – upper – lower
11 gauge – 3 mm
0.12 in.
Shirt thickness
3 gauge – 6 mm
0.24 in.
Approx. weight
2049 kg
4519 lb
Drivelines – Size – Main
CV ASAE Category 4, splined telescoping profiles
Blade tip speed – 540 rpm – 1000 rpm
87.8 m/s
288 fps
Gearboxes
Five years

Capacity

Cutting width
4.6 m
15 ft
Cutting height
25.4-406.4 mm
1-16 in.
Cutting capacity (diameter)
50.8 mm
2 in.
Cutting chamber depth
254 mm
10 in.

Tractor compatibility

Tractor PTO HP range
37 kW
50 hp
Tractor PTO
540 rpm
Static Vert Drawbar Load Rating

Hitch

Type
Standard self-level hitch clevis with 57.2-cm (22.5-in.) narrow-profile width
Category
Hitch width
Jackstand
Mechanical jackstand in base for all machines. Hydraulically operated height, stays vertical while raising/lowering.

Dimensions

Transport width
9.1 ft (2.8 m) at wing wheels
Overall width
4.7 m
15.4 ft
Overall length
5.3 m
17.3 ft
Deck shape
Easy-clean dome-shaped top deck
Deck type
Single dome deck
Deck thickness
11 gauge – 3 mm
0.12 in.
Shirt thickness
3 gauge – 6 mm
0.24 in.
Hinges
Intermittent cast steel segments – greaseable single 2.5-cm (1-in.) diameter full-length hinge pin
Approx. weight
1623 kg
3580 lb

Drivelines

Size
Main
CV ASAE Category 4, splined telescoping profiles
Connecting
ASAE Category 4, splined telescoping profiles
Protection
Connecting
No-seize, slip-clutch driveline

Gearcases

Number
4
HP rating
Transfer
Continuous: 186 kW
250 hp
Peak: 224 kW
300 hp
Center
Continuous: 56 kW
75 hp
Peak: 75 kW
100 hp
Outer
Continuous: 56 kW
75 hp
Peak: 75 kW
100 hp

Blades

Thickness
13 mm
0.5 in.
Width
102 mm
4 in.
Type
Suction
Overlap
152 mm
6 in.
Blade rotation
Blade tip speed
540 RPM
86.6 m/s
284.1 fps
Material flow system
Blade holder
Type
Round stump jumper for maximum protection for blade carrier against obstruction damage

Hydraulics

Wing lift
Simultaneous
Wing flex
For transport: upward 90 degree (angle)
Working angles: upward 45 degree (angle)
downward 22 degree (angle)

Wheels

Type
Option 1
4-bolt, laminated: 21×5.25×9
Option 2
4-bolt, 16PR severe-duty ag: 21x7x12
Suspension
No suspension – rigid back axle
Row width adjustment
No
Wing-leveling adjustment
Easy adjust turnbuckle with bearing

Shielding

Front
Single-row chain guard
Rear
Single-row chain guard
