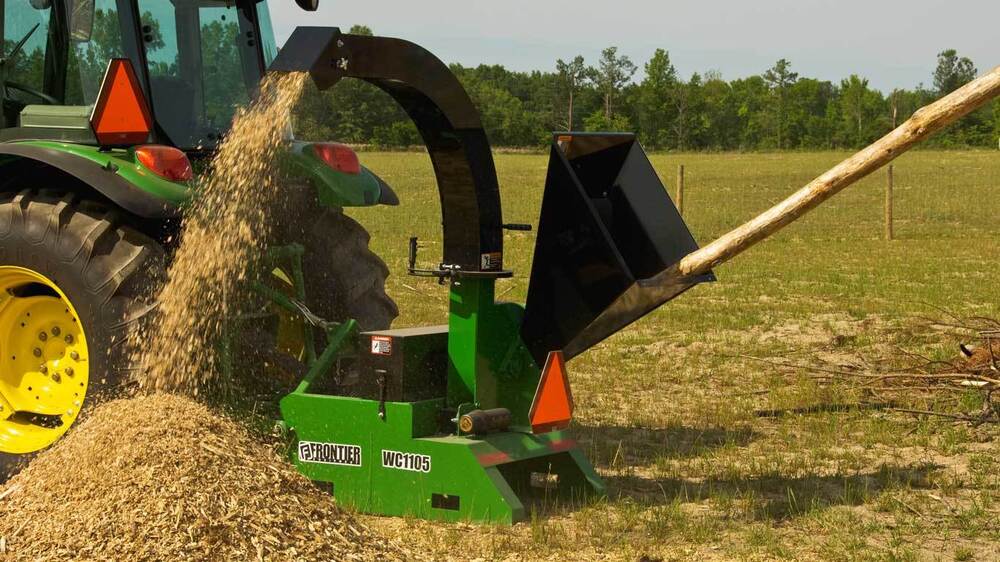

WC11 Series Wood Chippers

  • Efficient drive system
  • Double-sided knives
  • iMatchTMcompatible

Request More Information - New Equipment

Belt drive system

The belt drive system allows the WC11 Series Wood Chippers to operate using less horsepower while keeping the rotor rpm at a range from 1380 to 1920 rpm, depending on the model.



The WC1103 is a single belt drive, while the WC1105 has three belts.

  • Efficient drive system
  • Double-sided knives
  • iMatchTMcompatible

Dimensions

Chip opening
76×140 mm
3×5.5 in.
Hopper opening
635×457 mm
25×18 in.

Feed options

System
Manual (gravity)
Feed_x001A_roller diameter
Hopper height
965 cm
38 in.

Chip chute

Fixed
2 positions
Adjustable

Weights

Unit
170 kg
375 lb
Rotor style
Disc
Rotor
29.5 kg
65 lb

Tractor compatibility

PTO rpm
540 rpm
HP range (Tractor PTO hp)
13.4-29.8 kW
18-40 hp

3-Point hitch

Category
Cat. 1
iMatch™ or Quik-Coupler

Hydraulics

Requirements
Self-contained system

Chipping

Knife quantity
Two
Knife size
635x89x7.9 mm
2.5×3.5×0.3125 in.
Knife bolt
Shear bar
Adjustable hardened anvil
Rotor rpm
1920 rpm

Belt drive system

Number
One bx
Type
