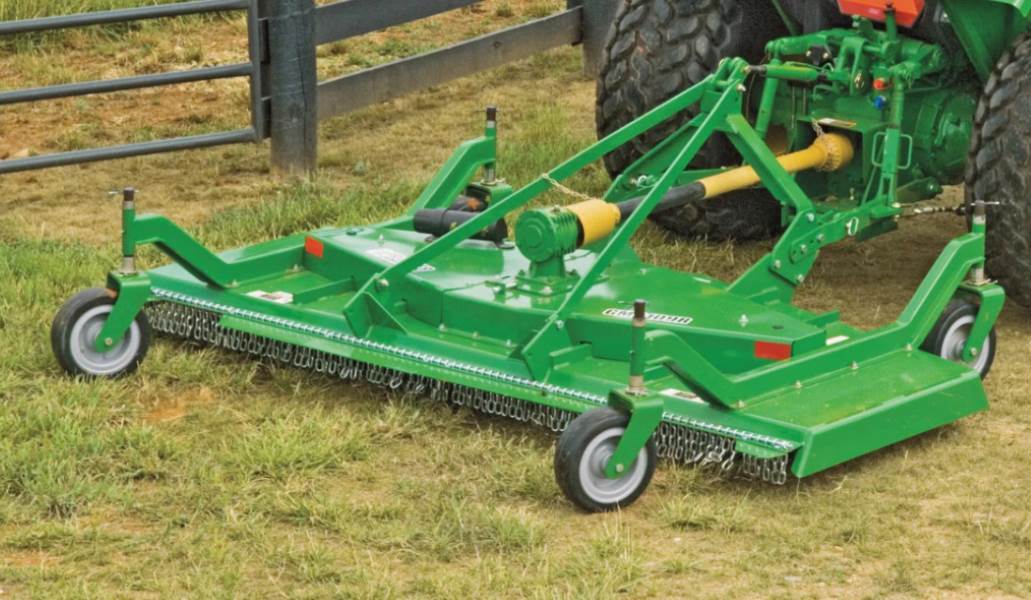

GM2109R 9′ Rear Discharge Grooming Mower with Rear Chain Shields and Front Antiscalping Roller

Free Swinging Kick Back Blades
Double Belt Drive with No Idler
One Piece Balanced Steel Pulleys
iMatch Compatible (Quick-Attach System)
4 Swivel Tires – Solid or Pneumatic
Type: Rear Discharge
Tractor PTO Speed: 540 RPM
Tractor Horsepower: 30 to 70 HP
Shipping Weight: 1608 lbs.
Mower Deck Gearbox HP: 70 HP
Hitch: Category I
Gearbox Ratio: 1:2:08
Driveline:
1-3/8 In. ASAE Category IIII
Drive Type: Gearbox Over V/Belt
Deck Thickness:
8 Gauge Reinforced Deck
Cutting Width: 110 In.
Cutting Height Range:
From 1.3 In. to 5.3 In.
Cutting Height Adjustment:
Spacer On Caster
Caster Wheels:
(4) 12 In. x 4 In. Solid or
13 In. x 6.5 In. (4 Ply, with
Tubes) Air
Caster Wheel Bearings:
Shielded Roller Bearings
Blade Tip Speed: 14,998 FPM
Blade Spindles: (3) Cast Iron
Blade Spindle Bearings:
Shielded Tapered Bearings (2) Per Spindle
Blade Composition:
Heat-Treated Alloy Steel
Blade Overlap: 1-1/8 In.
Blade Dimensions:
(6) 15-7/8 In. x 2-3/4 In. x 1/4 In.
Belts: CX, Polyester/Cogged
Belt Adjustment: Single Point,
Slotted Track Adjustment – No Idlers
Assembly/Set-Up Time:
30 Minutes (Approximate)
Approximate Operating Weight: 1490 lbs.
Front Center Roller Kit: Standard
1 Year Warranty
